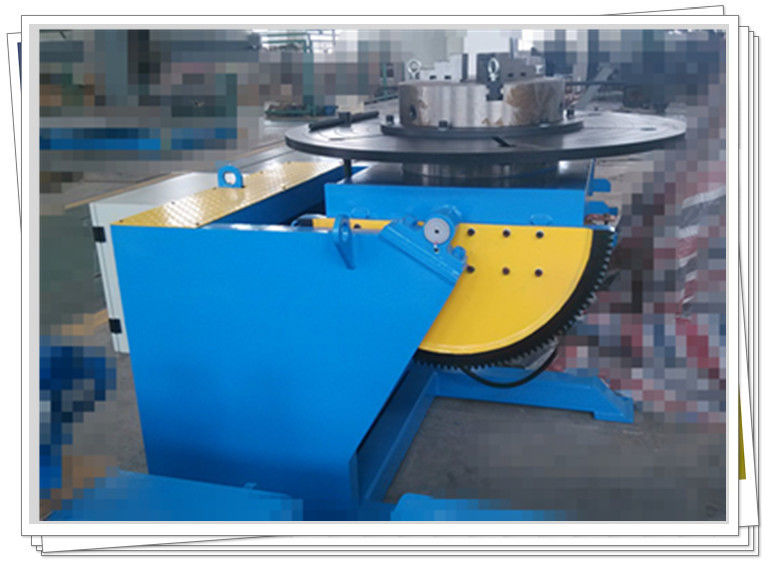

3000kg Tilt Benchtop Welding Positioner For Pipe Flange Welding

Szczegóły produktu

Place of Origin: China

Nazwa handlowa: Ronniewell

Orzecznictwo: CE,ISO,CSA,SGS

Model Number: ZHBJ30

Warunki płatności i wysyłki

Minimum Order Quantity: 1set

Cena: Confirm with us

Packaging Details: Mainframe naked, spare parts packed in case

Delivery Time: 30working days

Payment Terms: 30% TT in advance, 70% TT before the shipment

Supply Ability: 45set/month

Uzyskaj najlepszą cenę
Atrakcja:

Pipe Rotators for Welding

,

pipe welding positioner

Obciążenie znamionowe:
3000 kg
Worktable dia:
1400 mm
Łożysko:
Łożysko wahliwe
Wysokość stołu roboczego:
Nastawny
Max. Maks. eccentricity distance odległość ekscentryczności:
200 mm
Maks. Odległość środka ciężkości:
300 mm
kolor:
Niebieski / Dostosuj
Napięcie:
220/380/440 V / Dostosuj
Obciążenie znamionowe:
3000 kg
Worktable dia:
1400 mm
Łożysko:
Łożysko wahliwe
Wysokość stołu roboczego:
Nastawny
Max. Maks. eccentricity distance odległość ekscentryczności:
200 mm
Maks. Odległość środka ciężkości:
300 mm
kolor:
Niebieski / Dostosuj
Napięcie:
220/380/440 V / Dostosuj
3000kg Tilt Benchtop Welding Positioner For Pipe Flange Welding

3000kg Tilt Benchtop Welding Positioner For Pipe Flange Welding





Brief Key points:

  • Purpose: Adjust the work piece to proper welding work position.
  • Approach: work table tilting (overturning), unlimited free rotating at random tilting angle.
  • Apply industries: pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure





Welding positioner feature:
1. Welding positioner is mainly composed of worktable rotating unit and tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at ideal position .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.
5. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.
6. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .
7. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .





Welding positioner detail description:

  • Welding positioner is mainly composed of worktable revolving unit and tilting unit. With worktable lifting, tilting and rotating.
  • It is mainly used to place the workpiece in the best position for welding and assembling.
  • It can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc.
  • It has the advantages of compact volume, good appearance, light weight and easy operation.
  • The welding positioner series can divide into side tilting type , head to tail rotary type, headstock & tailstock lifting rotary type, headstock & tailstock tilting type, double rotary type positioner.
  • The positioner can work with welding column & boom to realize the automatic special purpose welding center.
  • As robot peripherals, it can also work with robot to realize automatic welding .
  • We can design and customize the positioners according the customers workpiece and welding procedure.





Technical parameter list:

Model Rated loading(kg) Rotary speed(rpm)

Overturning

speed (rpm)

Overturning

 angle

Size of

work table

(mm)

ZHBJ06 600 0.09~0.9 1 0~90 1000
ZHBJ12 1200 0.05~0.5 0.4 0~120 1200
ZHBJ30 3000 0.05~0.5 0.23 0~135 1400
ZHBJ50 5000 0.05~0.5 0.2 0~135 1500
ZHBJ100 10000 0.05~0.5 0.2 0~135 2000



Model Motor power (kW)

Way of

setting

Max. Eccentric

distance (mm)

Max. Distance

of gravity center

(mm)

Max. Turning

diameter (mm)

Rotary Overturning
ZHBJ06 0.75 0.75

Variable

frequency

drive

150 200 1500
ZHBJ12 1.1 1.1 200 250 2050
ZHBJ30 1.5 2.2 200 300 2100
ZHBJ50 2.2 3 200 300 2500
ZHBJ100 3 4 200 400 3240



Remark:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Machine power is arranged as per your requirement; .
4.Controlled is remote-control box, optional is foot switch;
5.Beacause of the offset from center and gravity center ,for the longer and more offset from gravity center workpiece, large model should be chosen. We would be pleasure to make solution for you if needed.
6.For special requirements ,customized service is available.
