3KW Self-adjusting Welding Turning Rolls Wireless Remote Control

3KW Self-adjusting Welding Turning Rolls Wireless Remote Control

Brief Introduction:

• 1+1 two pipes fit up rotator is used for pipe growing line.
• Hydrauli fit up rotator & adjustable welding rotator equipped on one integrate steel rack. Foundation work like rail layout is not required.

Detail Description of Pipes Fit Up Rotator:

• This fit up rotator is mainly used for cylindrical(or low angle taper)work piece fit up welding.

• By proper operation, it could regulate the can displacement on vertical,horizontal or even inclined direction,so as to make the cans fit up.

• The fit in cans are conveyed backward by movable rotator.

• Another can will be placed in front of the fit in can.And then repeat fit up work.

• Meanwhile welding the inner & outer circumferential seam.

• Repeat above procedure to complete the whole cans fit up.

• It is the optimal equipment to increase production efficiency,insure production quality & decrease labor working intensity.

• This equipment is composed of two sets of hydraulic liftable rotator,hydraulic pump station & control system.

• Two rotators regulate the roller rack center distance independently by bidirectional hydraulic cylinder.

• Thereby it can make the work piece moving on vertical,axial & radial direction,in convenient of work piece fit up.

• The roller of the equipment is enclosed with high quality PU wheel,no falling of,long using span. Remote control box is equipped.

Pipes Fit Up Rotator Feature:

• Pipe fit up rotator is composed of two pieces of distance adjustable rotators, electric system and hydraulic pump.

• There are two sets of roller mechanism installed on rotator base.

• Each roller mechanism has a PU roller.Roller distance could be regulated by hydraulic cylinder, so as to adjust the vessel position in three dimensional to fit up the vessel effectively & quickly.

• Rotator base is made of welded plate,with feature of high strength to make sure no deformation in long period using span.

• Rotator base & boring is integrated process,so as to guarantee the roller rotating precision.

• Roller is made of imported PU material,enlarged contact surface,enhanced using life.

• Roller steel core processed by unique working craft,the coated PU will keep away from peeling off issue.It is guaranteed for 2 years.

• Once it peeling off without human factor,Ronniewell will replace it for free.

• Completed structure is processed by temper destressing.

• It will be pre-treatment before painting, one layer of zinc rich primer,two layer of polyurethane finish.

• Nameplate indicated loading capacity will be placed on notable position of the machine body.

• Electric system is composed of electric cabinet & remote control box.

• Electric control box is used to affect working craft required mechanically act by the controlling of motor make-brake,and also control & protect the roller motor.

• Main low voltage electric elements is using brand famous product.

Main Technical Parameters:

Application:

• Pressure vessels;
• Pipe manufacturing industries;
• Wind power fabrication;
• Chemical & fuel storage tank fabrication;
• Any heavy cylindrical job;

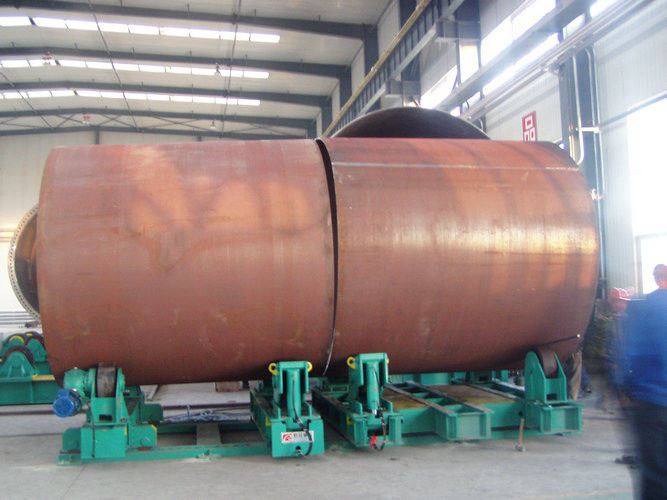

Application photo:

Delivery photo:

Name of the machine:
welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator, self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding rotator, bolt adjustable welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
